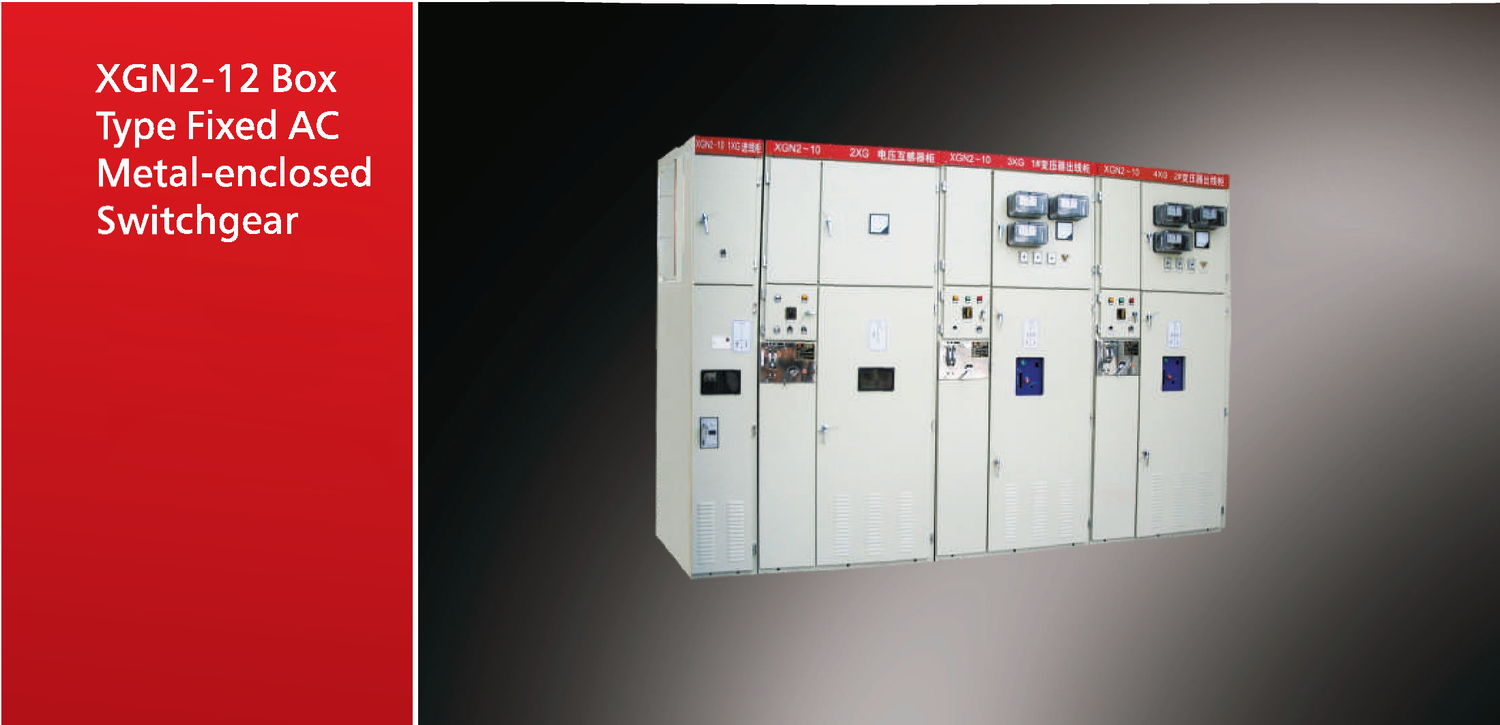

XGN2-12 Box Type Fixed   AC   Metal-enclosed Switchgear
Product Details

General

XGN2-12 box type fixed AC metal-enclosed switchgear(hereinafter referred to as switchgear), is designed according to national standard Gb3906 3-35kV AC Metal-enclosed Switchgear, meets the requirements of standard IEC298, even reaches the "five-prevention” requirements raised.


Basic technical parmeters

Rated working voltage3.6-12kV
Max working voltage12kV
Rated working current630-3150A
Rated breaking current(virtual value)16-40kA
Rated short-circuit making and breaking current(peak value)40-1OOkA
Roted dynamic stability current(peak value)40-1OOkA
Roted thermal stability current(virtual value)16-40kA
Thermal stability time4S
Protection levelIP2X
Bus systemSingle bus sectioning
Operation modetype(CD10, CD17) Spring energy storage type(CT8, CT17s CT19)
Outline size(W×D×H)1100 x 1200 x 2650 ( General type)
Weight1000kG
